Fire Magic 48" 4-Burner Echelon Diamond E1060s Gas Grill wtih Analog Thermometer

The Fire Magic Difference

When you choose Fire Magic you are purchasing the finest grill available, backed by the industry’s best and longest warranty – and the most dedicated, customer-focused people in the business. Our grills are an investment that pays dividends for years and years. They’re engineered and built to perform for a lifetime. So the pride and joy of owning your Fire Magic Grill will last you a lifetime.

A heritage of Unmatched Durability, Performance, and Versatility - Proudly Crafted in the USA.

Fire Magic Grills are made by people who demand the best, for people who demand the best. Each and every Fire Magic product is made with passion and care by highly skilled craftsmen. Outdoor grilling equipment is all we’ve ever made.

Our grills are constructed of the highest quality, heavy gauge, and appliance-grade stainless steel. With unsurpassed attention to the most precise detail in design and construction, Fire Magic Grills are the most elegant, and the most durable barbecues available. They easily perform at the highest temperatures for the longest time of any outdoor barbecue grill. Unmatched performance and cooking versatility are yours when you own a Fire Magic Grill. Fire Magic’s superior technology and construction have set the standard for more than 75 years, and that’s still true today.

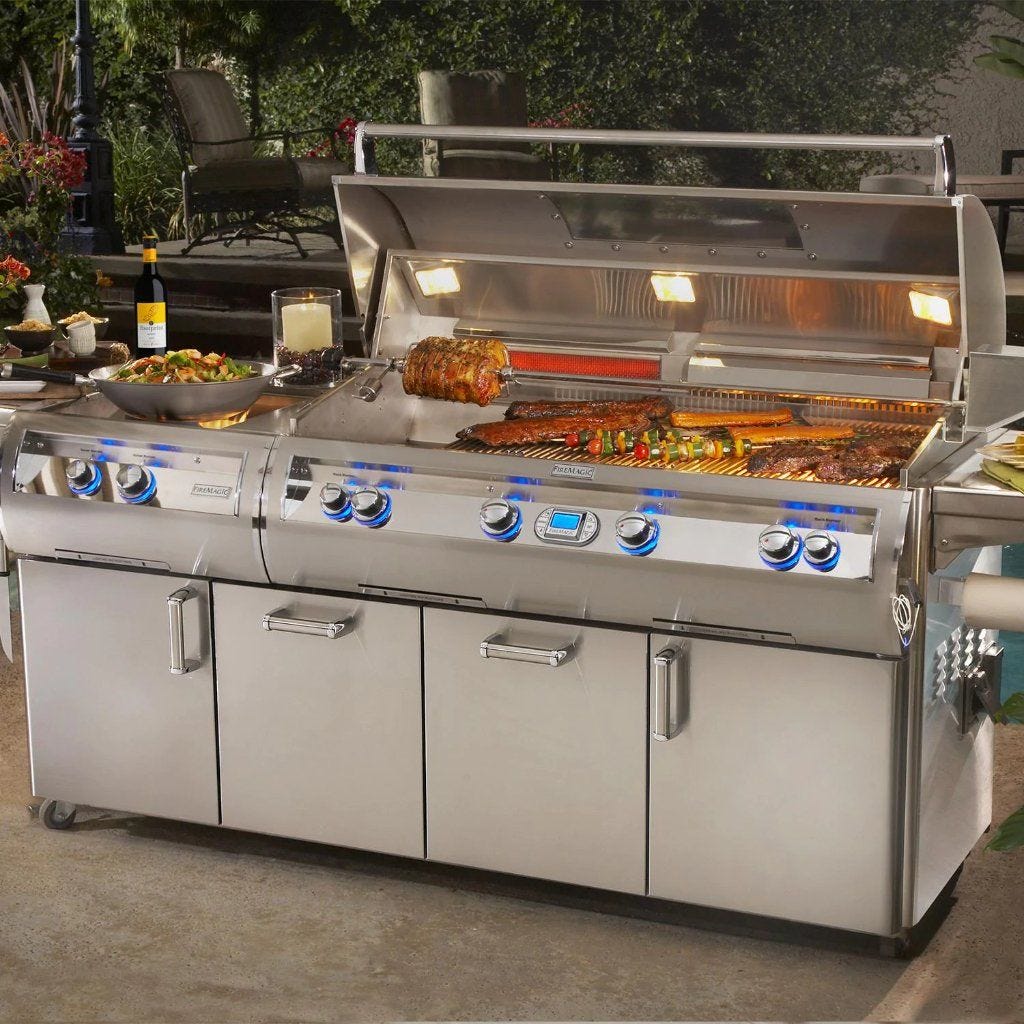

Echelon Diamond E1060s Gas Grill

When only the best will do, our top-of-the-line Fire Magic Echelon Diamond grill combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue backlit knobs, and an optional Magic View Window. Echelon Diamond defines luxury in grilling.

Grill Features

	Hot Surface Ignition System Most advanced and reliable lighting system available. Simply push in the control knob to activate the hot surface, turn up the gas, and light your grill. 110V electricity needed.
	Diamond Sear Cooking Grids Designed with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one-half of the total cooking surface. Made from all 304 Stainless Steel. Bead blasted with a matte finish for a non-stick surface.
	Cast Stainless Steel Burners Burners made of ¼” thick cast 304 stainless steel burners weighing up to 12 lbs, featuring a lifetime warranty Designed with a protective lip above the ports to prevent clogging from grease. Up to 31,000 BTUs per burner.
	Charcoal Smoker Basket Adds charcoal or a variety of smoked flavors to foods while grilling. Expanded stainless steel metal grid on which to place charcoal or wood chips. Includes an expertly designed and crafted 14-gauge stainless steel smoker cover; with an easy-to-use cover lifter.
	Analog Thermometer Polished stainless steel bezel and embedded in the hood. It is large and attractive with a forward angle for easy viewing. Measures up to 1000°F.
	Recessed Infrared Quantum Backburner Uses 100% stainless steel foam which provides more BTU heat for quicker more efficient rotisserie grilling. Includes a stainless steel cover to protect the back burner when not in use.
	Angled Halogen Internal Lights 12V Halogen light bulbs. Lights are angled for easy nighttime grilling. No screws and an easily removable lens make for quick cleaning and simple bulb replacement.
	90 Degree Double Walled Hood 90° angled oven allows more heat and smoke to rise away from the grill. Double-walled 304 stainless steel oven for maintaining temperature.

Additional Features

Contoured control panel
Back-lit control knobs
Master power switch
Larger drip tray with ball bearing glides
Pre-assembled on a stainless steel cart
Four locking casters
Dual storage doors and dual storage drawers
Two fold-down solid shelves with towel bars
12" deep firebox
Custom Personalized Name Plate
Flush mounted power burner
Rotisserie kit included

Specifications

Model Number	E1060s (-51)
No. of Burner	4 Cast Stainless Steel "E" Burners
Cooking area	48″ x 22″ (1056 sq. in.)
Warming Rack	48″ x 8″ (384 sq. in.)
Grilling Area BTU	112000
Rotisserie Burner BTU	22000
Power Burner BTU	60,000
Dimensions	111" (W) x 26" (D) x 60.62" (H)
Exterior Material	304 Stainless Steel
Cooking Grate	Stainless Steel
Ignition	120 VAC/12 Volt Hot Surface Ignition
Weight	820 lbs.
Thermometer	Analog

Warranty

Fire Magic Grills offers a lifetime warranty for cast stainless steel burners, stainless steel cooking grids, and stainless steel housing. A 15-year warranty for brass valves, inner liners, manifold assemblies, porcelain housings, and backburner assemblies (excluding ignition parts). A 5-year warranty for flavor grids and infrared burners on the grill. A 3-year warranty for side burners and other Fire Magic grill components (excluding ignition and electronic parts). A 1-year warranty for ignition systems (except batteries), electronic components (including lights and thermometers), and grill accessories.
