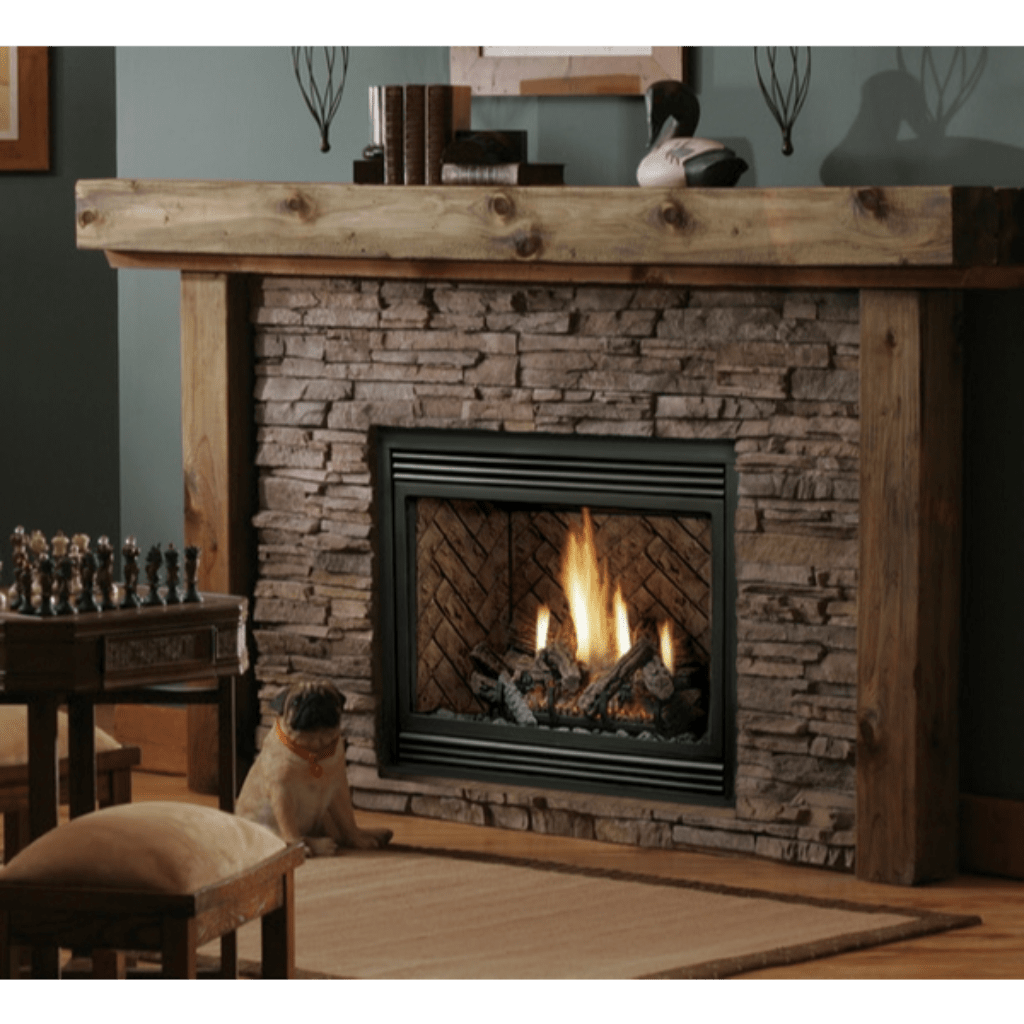

Kingsman 36" HBZDV3624 Zero Clearance Direct Vent Gas Fireplace
From $2,000.00
To $10,986.00
OVERVIEW
The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home.
Kingsman fireplaces are among the safest and best designed on the market. This 36-inch gas-burning fireplace is made from top-of-the-line materials and comes complete with a dual burner, wall switch, 4/7" sloped top flute, tempered glass and louvered framing. It also comes standard with a completely sealed combustion unit and painted stove with the very best quality silicone paint.
Available in natural gas and liquid propane, Kingsman quality fireplaces let you enjoy the wonder of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home. Kingsman fireplaces have fully sealed combustion chambers with no pollution spillage to depreciate the indoor air quality of your home.
Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long-lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.
STANDARD FEATURES
- Size: 36 inches
- Vent type: direct vent
- Safety Screen Barrier
- Fully sealed combustion chamber
- Fuel Type: Natural Gas, Propane Gas
- Efficiency Rating: 51% NG / 46% LP
- Dual burner with Realistic Flame Pattern
- Tempered glass-front radiates heat to the room
- Able to be configured as a clean face or louvered model
- Standing pilot valve system ensures ready operation during power outages
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches.
PRODUCT SPECIFICATION
| Model | HBZDV3624N/NE | HBZDV3624LP/LPE |
| Fuel | Natural | Propane |
| Flue | Top | Top |
| Gas Control | Millivolt / IPI | Millivolt / IPI |
| Input Max. | 24,000 BTU | 22,000 BTU |
| Input Min. | 14,000 BTU | 15,000 BTU |
| FE (p.4.1-02)% | 50.48% / 52.30% | 52.59% / 54.24% |
| Flue Sizes | 4/7" | 4/7" |
| Glass Size | 31 3/4"W x 20 7/16" H | 31 3/4"W x 20 7/16" H |
| Glass Type | Tempered | Tempered |
| Size (WxHxD) |
36"W x 34 13/16"H x 16 7/16" D | 36"W x 34 13/16"H x 16 7/16" D |
| Viewing Area |
29 3/4" W x 18 5/8" H | 29 3/4" W x 18 5/8" H |
| Venting | 4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent | 4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
| Electronic Ignition |
Yes | Yes |
| Certification | Decorative | Decorative |
| Bedroom Approved |
Yes | Yes |
