Kingsman 60" ZCVRB60 Linear Direct Vent Gas Fireplace

OVERVIEW

The ultimate in Zero Clearance Direct Vent Fireplaces for new home construction or renovation, and your best choice for installation anywhere throughout your home. Warm up your favorite room with the beauty of a Linear Fireplace.

The Kingsman Linear Direct Vent Gas Fireplace Millivolt / IPI Pilot is a great addition to any home. This attractive linear-style fireplace comes with tempered glass, a safety barrier screen, and decorative bronze glass. it's suitable for mobile homes, bedrooms, or bed-sitting rooms.

Kingsman 66-Inch Zero Clearance Linear Direct Vent Gas Fireplace with Fire Glass offers a formidable direct vent gas fireplace option for your home. Featuring heavy-duty steel construction, this classic design offers durability to withstand the test of your time. With its premium burner system, realistic flame pattern, and impressive fire glass, this appliance replicates the design of a traditional wood fireplace while incorporating an up-to-date styling, as well. With its safe and authorized design, this unit are often installed during a bedroom, bed-sitting room, or perhaps during a manufactured home.

This fireplace are often customized in a variety of ways. Additionally, this unit are often purchased with a remote-ready millivolt ignition system or an intermittent pilot ignition (IPI). This fireplace also can be purchased with a porcelain reflective liner to further customize your appliance.

STANDARD FEATURES

Color: Black
Tempered glass
Safety screen barrier
Attractive linear style
Fuel Type: Natural Gas, Propane Gas
Includes decorative bronze glass
Mobile home, bedroom and bed sitting room approved
Product Dimensions: 66 3/16" W x 39 9/16" H x 19 3/8" D
Hi/Low Millivolt or IPI valve system will operate during power failures

*Venting Requirements: This unit requires venting pipe with an inner diameter of 5 Inches.

INCLUDES

Linear burner
Safety screen barrier
Bronze glass media
SIT Valve with Hi/Lo Adjustment

PRODUCT SPECIFICATION

Model	ZCVRB60N/NE	ZCVRB60LP/LPE
Fuel	Natural	Propane
Flue	Top	Top
Gas Control	Millivolt / IPI	Millivolt / IPI
Input Max.	35,000 BTU	35,000 BTU
Input Min.	23,000 BTU	28,000 BTU
FE (p.4.1-02)%	55.27% / 56.66%	55.27% / 56.66%
Flue Size	5”/8”	5”/8”
Glass Size	60" W x 17 7/8" H	60" W x 17 7/8" H
Glass Type	Tempered	Tempered
Size (WxHxD)	66 3/16” x 39 9/16” x 19 3/8”	66 3/16” x 39 9/16” x 19 3/8”
Viewing Area	61 1⁄8” x 19 15/16”	61 1⁄8” x 19 15/16”
Venting	5” Flex or 8” Hard Pipe	5” Flex or 8” Hard Pipe
Electronic Ignition	NO / YES	NO / YES
Certification	Heater	Heater
Bedroom Approved	Yes	Yes

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONS & ACCESSORIES

Click to see Conversion Kit

Conversion Kit

Conversion Kit to Propane Millivolt (60ZCVRB-CKLP)

For Millivolt Units only
Natural gas to propane
Complete with conversion instructions
For use with ZCVRB60 Direct Vent Zero Clearance Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Natural Gas Millivolt (60ZCVRB-CKNG)

For Millivolt Units only
Propane to natural gas
Complete with conversion instructions
For use with ZCVRB60 Direct Vent Zero Clearance Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Propane IPI (60ZCVRB-CKLPI)

For IPI Units only
Natural gas to propane
Complete with conversion instructions
For use with ZCVRB60 Direct Vent Zero Clearance Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Conversion Kit to Natural Gas IPI (60ZCVRB-CKNGI)

For IPI Units only
Propane to natural gas
Complete with conversion instructions
For use with ZCVRB60 Direct Vent Zero Clearance Gas Fireplace
Includes all necessary gas valve and pilot assembly conversion components

Click to see Enclosure Grill

Enclosure Grill

Enclosure Ventilation Grill Front (VL60EG)

Product Dimensions: 46 9/16" W x 2 1/2" H
Comes with screws
For use with ZCVRB60 fireplaces
3 5/8" x 60 5/8" required opening
Includes louver grill, out trim grill mount, upper and lower frame for hidden grill mounts

Enclosure Ventilation Grill Side (VL60EGS)

Product Dimensions: 15 1/4" W x 6 5/8" H
Set of two grills
For use with ZCVRB47, ZCVRB60 fireplaces
6 5/8" x 15 1/4" required opening each
Must be within 3/4" of sealed enclosure top

Click to see Surrounds Trim Kit

Surrounds Trim Kit

Stainless Steel Surround Trim Kit (ZCVRB60S1SS)

Color: Stainless Steel
Surround trim kit
1 1/2 inches wide
Attractive stainless steel finish
Specifically designed for Kingsman ZCVRB60 Fireplaces

Black Surround Trim Kit (ZCVRB60S1BL)

Color: Black
Surround trim kit
1 1/2 inches wide
Attractive black finish
Specifically designed for Kingsman ZCVRB60 Fireplaces

Click to see Liner Kit

Liner Kit

3 Piece Porcelain Reflective Liner Kit (ZCVRB60PL)

Color: Reflective Black
Amplifies the flame presentation via reflective qualities
Durable porcelain coated steel finish
Installation hardware included
Sleek modern appearance compliments fire glass installations
Designed specifically for ZCVRB60PL series fireplaces

Click to see Assorted Cannonball

Assorted Cannonball

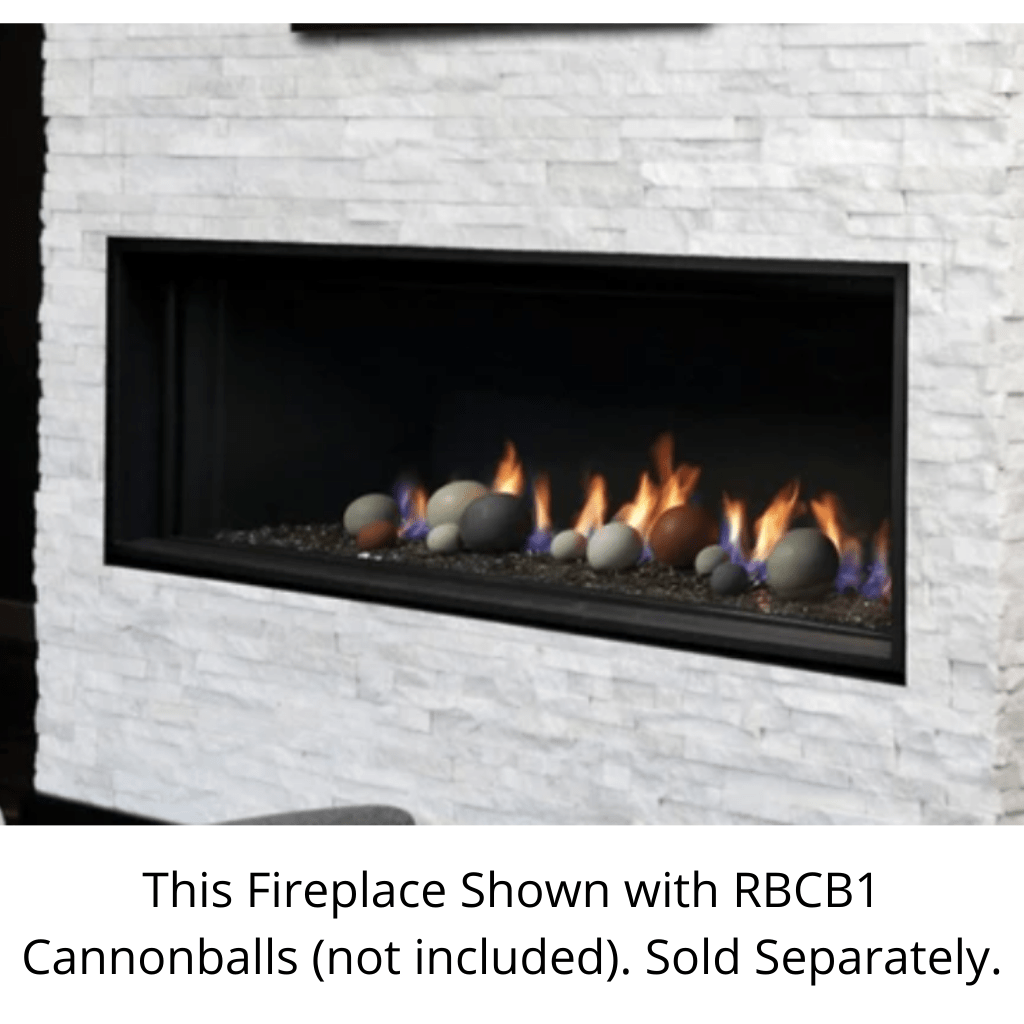

Assorted Cannonball (RBCB1)

Color: Various Colors
Unique design alternative to glass media
Design for Kingsman fireplaces and stoves
Can be used with glass media accents

Click to see Fan Kit

Fan Kit

Speed Temperature Sensing Fan Kit (Z46FK)

Squirrel cage blower design for quiet and powerful operation
Thermal switch for automatic on/off operation
Variable speed control with built-in all off setting
Designed to fit Kingsman fireplaces

Click to see Accent Lighting

Accent Lighting

Universal Light Kit (ULK64)

Four lamps
Universal light kit
Optional accessory
For use with ZCVRB60 fireplaces

Click to see Tile Lip Kit

Tile Lip Kit

Tile Lip Kit (V60PTLK)

Three pieces
Optional accessory
Includes 11 screws
1 bottom piece, 2 side
For use with ZCVRB60 fireplaces

Click to see Thermostat

Thermostat

Wall Mount Thermostat- For Millivolt Units (Z2MT)

Simple on/off millivolt thermostat design
Easy to use digital control
Allows convenient operation of gas appliances
Simple to wire to existing millivolt systems

Programmable Digital Wall Mount Thermostat- For Millivolt Units (Z80PT)

Schedule programmable for desired operation
Works with Kingsman millivolt appliances
Easy to read digital LCD display

Click to see Remote Control

Remote Control

	On/Off Remote Control for Millivolt/IPI Units (GFRC) Simple on/off operation for millivolt appliances Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat Remote Control Millivolt/IPI Units (GTRC, EGTRC) On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation
	Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units (GTMRCN, GTMRCP, EGTMRCN, EGTMRCP) On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural gas and propane gas fireplaces
	Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units (GTFRCN, GTFRCP, EGTFRCN, EGTFRCP) On/off operation with modulating thermostat control Allows for the operation of the appliance without manual control Included receiver easily mounts within the appliance chassis Reliable RF transmitter operation Includes high/low modulating motor for natural and propane gas fireplaces Allows for control of optional fan operation
