| Fuel type : |
Dry cordwood |
| Recommended heating area-ft² : () |
900 - 2,300 |
| Overall firebox volume : |
3.3 |
| EPA loading volume-ft³ : |
2.67 |
| Maximum burn time : () |
10 h |
| Maximum heat output (dry cordwood) : (2) |
90,000 BTU/h (26.4 kW) |
| Overall heat output rate < : (2) (3) |
15,841 BTU/h (4.64 kW) to 57,041 BTU/h (16.72 kW) |
| Average overall efficiency (EPA cribs/Douglas fir) : (3) |
N.A. (HHV) (4) |
N.A. (LHV) (5) |
| Average overall efficiency (dry cordwood) : (3) |
71.1 % (HHV) (4) |
76.6 % (LHV) (5) |
| Optimum efficiency : (6) (7) |
78 % |
| Average particulate emissions rate : (8) |
0.95 g/h |
| Average CO : (9) |
61.3 g/h |
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
() Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb./ft³ and 20 lb./ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb./ft³ and 12 lb./ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb./ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) This appliance is officially tested and certified by an independent agency.
(9) Carbon monoxide.
General Features
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Maximum log length |
20" |
| Log positioning |
Over depth |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) |
15' |
| Baffle type |
C-Cast |
| Approved for an alcove installation |
Yes |
| Approved for a mobile home installation |
Yes, with fresh air intake |
| Shipping Weight |
465 lb. |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
14 1/2" X 11 5/8" |
| Glass air-wash system |
Yes |
| Overall dimension (Height) |
34" |
| Overall dimension (Width) |
24 1/4" |
| Overall dimension (Depth) |
30 1/2" |
| Door opening – dimension (Height) |
12" |
| Door opening - dimension (Width) |
16" |
| Firebox – dimension (Height) |
14 1/8" |
| Firebox – dimension (Width) |
19" |
| Firebox – dimension (Depth) |
21" |
| Firebox lined with refractory bricks for better heat distribution |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Steel thickness – body |
3/16" |
| Steel thickness – top |
5/16" |
| USA standard (emissions) |
EPA |
| Canadian Standard (emissions) |
CSA B415.1-10 |
| USA standard (safety) |
UL 1482, UL 737 |
| Canadian standard (safety) |
ULC S627 |
| Tested and listed as per applicable standards |
By an accredited laboratory (CAN/USA) |
| Warranty |
Limited lifetime |
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm) |
| |
Canada |
United-States |
| |
Single wall pipe |
Double wall pipe |
Single wall pipe |
Double wall pipe |
| Clearance – back wall |
14 1/2" |
6" |
14 1/2" |
6" |
| Clearance - corner |
10" |
8" |
10" |
8" |
| Clearance – side wall |
12" |
12" |
12" |
12" |
| Clearance – top (measured from the platform on which the appliance is installed)** |
84" |
84" |
84" |
84" |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
|
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
|
Specifications
|
BTU
|
90,000 |
|
Heating Capacity
|
900-2,300 sq. ft. |
|
Firebox Dimensions
|
19" W x 14 1/8" H x 21" D |
|
Log Length
|
20" |
Configuration
|
3300 Wood Stove with Black Door Overlay and Black Cast Iron Traditional Legs with Ash Drawer
|
|
|
3300 Wood Stove with Black Door Overlay and Pedestal with Ash Drawer
|
|
| 3300 Wood Stove with Black Door Overlay and Black Cast Iron Straight Legs with Ash Drawer |
|
| 3300 Wood Stove with Black Door Overlay and Brushed Nickel Cast Iron Traditional Legs with Ash Drawer |
|
| 3300 Wood Stove with Black Door Overlay and Brushed Nickel Cast Iron Straight Legs with Ash Drawer |
|
| 3300 Wood Stove with Brushed Nickel Door Overlay and Black Cast Iron Traditional Legs with Ash Drawer |
|
| 3300 Wood Stove with Brushed Nickel Door Overlay and Pedestal with Ash Drawer |
|

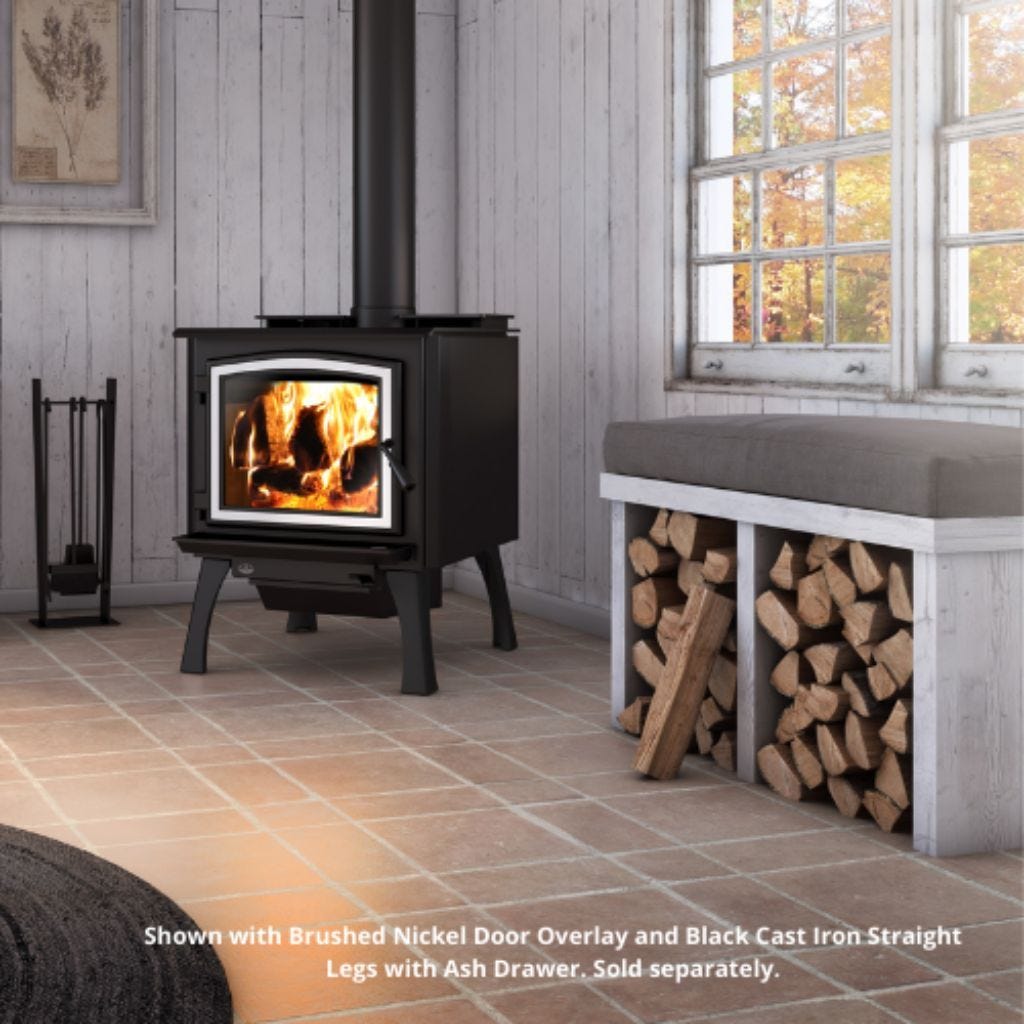

| 3300 Wood Stove with Brushed Nickel Door Overlay and Black Cast Iron Straight Legs with Ash Drawer |
|
| 3300 Wood Stove with Brushed Nickel Door Overlay and Brushed Nickel Cast Iron Traditional Legs with Ash Drawer |
|
| 3300 Wood Stove with Brushed Nickel Door Overlay and Brushed Nickel Cast Iron Straight Legs with Ash Drawer |
|
*NOTE: Shown with required door overlay and pedestal or leg kit (not included). The door overlay and pedestal or leg kit must be purchased to complete this unit.
Options:
|
130 cfm Blower with Variable Speed Control (Thermodisc Included)
--- provides mechanical convection of heat to the room
|
 |
|
5" Fresh Air Intake Kit for Wood Stove on Legs
--- allows outside combustion air to be supplied to the stove
|
 |
|
5" Fresh Air Intake Kit for Wood Stove on Pedestal
--- allows outside combustion air to be supplied to the stove
|
 |
|
5" X 4' Insulated Flex Pipe for Fresh Air Intake Kit
--- fits on fresh air kit adaptor
|
 |
|
5'' Fresh Air Intake Register with Airtight Damper
--- allows outside combustion air to feed the appliance with airtight damper which prevents air drafts when not in use
|
 |
|
Glass Ash Lip
--- keeps the stove's surrounding area clean
|
 |
|
Modular Floor Protection System
--- easy to assemble modular panel construction and simple clip together design requires no fasteners
|
 |
|
Rigid Firescreen
--- enhances crackle of your fire
|
 |
Accessories:
|
Blowers
|
Heat Powered Stove Fan (105 cfm)
--- increases the heat flow and balances the room temperature
|
|
|
Adhesives, Gaskets and Insulation
| High Temperature Red Silicone (300 ml - 10.1 fl.oz.) |
 |
| High Temperature Clear Silicone (300 ml - 10.1 fl.oz.) |
 |
|
|
Paint
| Metallic Black Stove Paint – 342g (12oz) Aerosol
--- adheres well and dries quickly and retains color well over time
|
 |
| Metallic Black Stove Paint – 85g (3oz) Aerosol
--- adheres well and dries quickly and retains color well over time
|
 |
|
|
Maintenance Products
|
Start-Up Kit
--- consist of stove paint 85g; fire starter (50u); high quality gloves; glass cleaner 16.9 oz.; digital moisture reader and double wall stove pipe probe thermometer
|
 |
|
Ash Vacuum Cleaner
--- designed almost exclusively for ash collection
|
 |
|
6" Round Brush with Polypropylene Bristles (3/8" NPT)
--- efficiently cleans chimneys and convenient loop for hanging
|
 |
|
Pull Ring (3/8" NPT)
--- securely connects to brushes and give you that extra safety while you use your chimney rod
|
 |
|
5' Fibreglass Rod (3/8'' NPT)
--- perfect rod for cleaning chimneys
|
 |
|
Kevlar Thread Wood Stove And Fireplace Gloves
--- gloves are recommended for a safe and clean use with any type of wood-burning appliance.
|
 |
|
19" Kevlar Thread Sewn Fireplace Gloves
--- cover the entire forearm to protect against heat sources
|
 |
|
Dry Cleaning Pad
--- easily cleans the soot from glass without water
|
 |
|
Wood Appliance Glass Cleaner (500ml - 16.9fl.oz.)
--- recommended for cleaning the glass of any type of wood-burning appliance
|
 |
|
|
Meters
| Digital Moisture Reader
--- accurately measures moisture content in wood logs. Wood should be below 20% humidy content
|
 |
|
|
Fire Starters
|
Sachet Pouches Fire Starter
|
 |
|
Wood and Paraffin Fire Starter Cubes
--- safe, odorless, soot less, strong burning; can be stored indefinitely and does not dry out
|
 |
|
|
Fireplace Tool Sets
|
Equiss Freestanding Log Holder
--- intersecting panel design for easy setup
|
|
|
48" Wood Storage with Finishing Trim
--- can be used as a bench when positioned horizontally; can be installed built-in or freestanding and configured vertically or horizontally
|
|
|
Drawer and Tool Kit for Wood Storage Insert
--- includes fire poker and shovel
|
 |
|
|
Hearth Pads
|
Glass Hearth Pad 10 mm - 54" X 46 3/4"
--- polished edges for a clean, finished appearance which offers a contemporary alternative to traditional hearth boards
|
 |
|
Modular Floor Protection System
--- easy to assemble modular panel construction and simple clip together design requires no fasteners
|
|
|
|
Heat Shields
|
Certified Modular Heat Shield System Extension
--- reduces clearances by up to 87.5% which includes mounting support brackets and hardware
|
 |
|
53" X 58 1/2" Certified Modular Heat Shield System
|
 |
|
