Osburn Inspire 2000 Wood Stove

OVERVIEW

Are you interested in getting off the beaten path? The Inspire offers a style that will surely withstand variable trends with these pure lines of balanced proportions, allowing the brand Osburn to easily compare to European-style products. This more contemporary look is available on steel base, soapstone or even a minimalist base for those who prefer to place the unit directly on a non-combustible podium. Equipped with a 2.3 cubic feet firebox and an outside air intake, this unit will meet the requirements of domestic energy standards, not to mention that a mobile home installation is permitted.

The Inspire largely meets EPA requirements with emissions as low as 1.54 g/h and complies with the most stringent North American requirements. A guarantee of quality, reliability and durability, once again Osburn clearly demonstrates its firm commitment to the environment to the delight of wood heating fans.

Required to complete the wood stove:

Decorative Side Panel
Base Kits

Appliance Performance

Fuel type :	Dry cordwood
Recommended heating area-ft² : ⁽⁾	500 - 2,100
Overall firebox volume :	2.4
EPA loading volume-ft³ :	2.02
Maximum burn time : ⁽⁾	8 h
Maximum heat output (dry cordwood) : ⁽²⁾	75,000 BTU/h (22.0 kW)
Overall heat output rate < : ⁽²⁾ ⁽³⁾	14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
Average overall efficiency (EPA cribs/Douglas fir) : ⁽³⁾	N.A. (HHV) ⁽⁴⁾	N.A. (LHV) ⁽⁵⁾
Average overall efficiency (dry cordwood) : ⁽³⁾	69% (HHV) ⁽⁴⁾	74 % (LHV) ⁽⁵⁾
Optimum efficiency : ⁽⁶⁾ ⁽⁷⁾	77 %
Average particulate emissions rate : ⁽⁸⁾	1.54 g/h
Average CO : ⁽⁹⁾	89.4 g/h

⁽¹⁾ Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

⁽⁾ Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

⁽²⁾ The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb./ft³ and 20 lb./ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb./ft³ and 12 lb./ft³. The moisture content is between 19% and 25%.

⁽³⁾ As measured per CSA B415.1-10 stack loss method.

⁽⁴⁾ Higher Heating Value of the fuel.

⁽⁵⁾ Lower Heating Value of the fuel.

⁽⁶⁾ Performances based on a fuel load prescribed by the standard at 7 lb./ft³ and with a moisture content between 19% and 25%.

⁽⁷⁾ Optimum overall efficiency at a specific burn rate (LHV).

⁽⁸⁾ This appliance is officially tested and certified by an independent agency.

⁽⁹⁾ Carbon monoxide

General Features

Combustion technology	Non-catalytic
High-efficiency certified appliance	Yes, EPA 2020 approved
Maximum log length	20"
Log positioning	Over width
Chimney diameter	6"
Flue outlet diameter	6"
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet)	12'
Baffle type	C-Cast
Approved for an alcove installation	Yes
Approved for a mobile home installation	Yes, with fresh air intake
Shipping Weight	537 lb. (244 kg)
Door type	Single, glass with steel frame
Glass type	Ceramic glass
Glass surface – dimensions (Width X Height)	20 1/4" X 9 1/2"
Glass air-wash system	Yes
Overall dimension (Height)	36 9/16"
Overall dimension (Width)	27 7/8"
Overall dimension (Depth)	24 15/16"
Door opening – dimension (Height)	8 3/8"
Door opening - dimension (Width)	20"
Firebox – dimension (Height)	11 15/16"
Firebox – dimension (Width)	21 1/4"
Firebox – dimension (Depth)	17 11/16"
Firebox lined with refractory bricks for better heat distribution	Yes
Stainless-steel secondary-air system improving gas combustion	Yes
Model	Pedestal
Steel thickness – body	3/16"
Steel thickness – top	5/16"
Easy-to-access ash drawer	Yes
USA standard (emissions)	EPA Method 28
Canadian Standard (emissions)	CSA B415.1-10
USA standard (safety)	UL 1482, UL 737
Canadian standard (safety)	ULC S627
Tested and listed as per applicable standards	By an accredited laboratory (CAN/USA)
Warranty	Limited lifetime

Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm)
	Canada		United-States
	Single wall pipe	Double wall pipe	Single wall pipe	Double wall pipe
Clearance – back wall	14 ½"	6"	11"	6"
Clearance - corner	10"	7"	10"	7"
Clearance – side wall	17"	17"	16"	16"
Clearance – top (measured from the platform on which the appliance is installed)**	84"	84"	84"	84"
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Specifications

BTU	75,000 BTU
Heating Capacity	500-2,100 sq. ft.
Firebox Size	2.4 cu ft.
Log Length	up to 20”
Flue Pipe Diameter	6”
Weight	400 lbs.
Width	27 7/8”
Depth - Overall	24 15/16”
Height	36 9/16”
Mobile Home Approved	Yes

Configuration

Inspire 2000 Wood Stove with Black Decorative Side Panel Kitand Minimalist Base

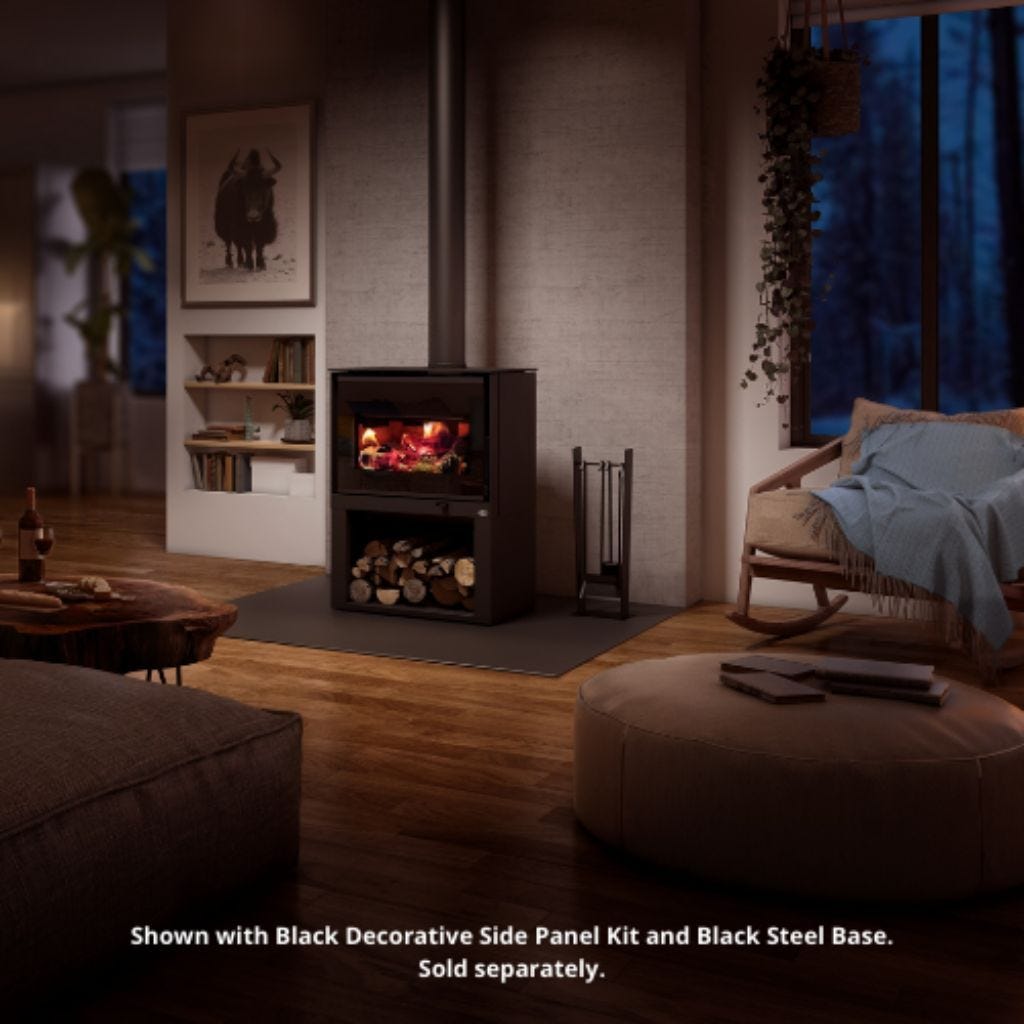

Inspire 2000 Wood Stove with Black Decorative Side Panel Kit and Black Steel Base
Inspire 2000 Wood Stove with Black Decorative Side Panel Kit and Soapstone Base

*NOTE: Shown with required decorative side panel and base kit (not included). The decorative side panel and base kit must be purchased to complete this unit..

Options

5'' Fresh Air Intake Register with Airtight Damper --- allows outside combustion air to feed the appliance
Blower Assembly with Variable Speed Control (up to 130 cfm) --- designed to help distribute the heated air produced by those stoves, making the heating process easier, faster, and more efficient
Moulded Refractory Panel --- adds extra appeal to the stove's interior
Moulded Refractory Panel for Minimalist Base and Insert --- adds extra appeal to the stove's interior
Quick Connect Thermodisc Kit --- turn blower automatically on/off.

Accessories

Blowers

Heat Powered Stove Fan (105 cfm)

--- increases the heat flow and balances the room temperature, starts automatically when surface temperature of stove reaches around 149'F

Adhesives, Gaskets and Insulation

High Temperature Red Silicone (300 ml - 10.1 fl.oz.)

High Temperature Clear Silicone (300 ml - 10.1 fl.oz.)

Silicone And 5/8" X 8' Black Door Gasket Kit

--- includes 8' of 5/8" dia. black gasket and one tube of high-temp silicone adhesive

Paint

Metallic Black Stove Paint – 342g (12oz) Aerosol --- adheres well and dries quickly and retains color well over time
Metallic Black Stove Paint – 85g (3oz) Aerosol --- adheres well and dries quickly and retains color well over time

Maintenance Products

Ash Vacuum Cleaner --- designed almost exclusively for ash collection
6" Round Brush with Polypropylene Bristles (3/8" NPT) --- efficiently cleans chimneys and convenient loop for hanging
Pull Ring (3/8" NPT) --- securely connects to brushes and give you that extra safety while you use your chimney rod
Kevlar Thread Wood Stove And Fireplace Gloves --- gloves are recommended for a safe and clean use with any type of wood-burning appliance.
19" Kevlar Thread Sewn Fireplace Gloves --- cover the entire forearm to protect against heat sources
Dry Cleaning Pad --- easily cleans the soot from glass without water
Wood Appliance Glass Cleaner (500ml - 16.9fl.oz.) --- recommended for cleaning the glass of any type of wood-burning appliance
