Osburn Stratford II Wood Fireplace with Heat Activated Variable Speed Blower
From $3,849.00
To $4,699.00
OVERVIEW
Let yourself be charmed by the timeless beauty of this non-catalytic wood fireplace, which performs particularly well and meets the EPA's most restrictive emissions standards..
Stratford II Wood Fireplace
Here’s what you’ve been hoping to find, a decorative and efficient wood fireplace that meets EPA emissions standards. That’s saying a lot, but the Osburn Stratford II has much more to offer, including a 2.5 cubic foot firebox that’s easy to access through double-cast iron doors. The Osburn Stratford II will impress you with its distinctive style and exceptional recommended heating area. Several options are available, including air distribution systems for heating adjacent rooms. With the Osburn Stratford II, there’s a world of possibilities waiting for you!
Required to complete the fireplace:
- Door Overlay
- Faceplate
- Anchor Plate for connecting chimney to the fireplace
Includes:
- Fresh Air Intake Kit
- 3" Adapter
- Air inlet block-off plate,
- Screws
- 3” to 4” adapter
Appliance Performance
| Fuel type : | Dry cordwood | |
| Recommended heating area-ft² : () | 750 - 2,200 | |
| Overall firebox volume : | 2.5 | |
| EPA loading volume-ft³ : | 1.69 | |
| Maximum burn time : () | 8 h | |
| Maximum heat output (dry cordwood) : (2) | 80,000 BTU/h (23.4 kW) | |
| Overall heat output rate < : (2) (3) | 14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW) | |
| Average overall efficiency (EPA cribs/Douglas fir) : (3) | N.A. (HHV) (4) | N.A. (LHV) (5) |
| Average overall efficiency (dry cordwood) : (3) | 68% (HHV) (4) | 73% (LHV) (5) |
| Optimum efficiency : (6) (7) | 74 % | |
| Average particulate emissions rate : (8) | 1.14 g/h | |
| Average CO : (9) | 53 g/h | |
(1) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
(*) Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(2) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
(3) As measured per CSA B415.1-10 stack loss method.
(4) Higher Heating Value of the fuel.
(5) Lower Heating Value of the fuel.
(6) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(7) Optimum overall efficiency at a specific burn rate (LHV).
(8) This appliance is officially tested and certified by an independent agency.
(9) Carbon monoxyde.
General Features
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast |
| Approved for a mobile home installation | No |
| Shipping Weight | 468 lb. (212 kg) |
| Door type | Double, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 22 1/4" X 12 1/2" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 40 5/8" |
| Overall dimension (Width) | 36 3/4" |
| Overall dimension (Depth) | 29 3/4" |
| Door opening – dimension (Height) | 10 1/2" |
| Door opening - dimension (Width) | 25 3/8" |
| Firebox – dimension (Height) | 12 1/8" |
| Firebox – dimension (Width) | 20 3/8" |
| Firebox – dimension (Depth) | 12 7/8" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Cast iron andirons | Yes |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty |
Limited lifetime |
Approved Chimney Types
| Manufacturiers* | Brand | Type | Diameter |
|---|---|---|---|
| American Metal | HSS | AC Triple Wall | 6" (15 cm) |
| American Metal | HS | AC Triple Wall | 6" (15 cm) |
| DuraVent | DuraTech | 1" Solid Pack | 6" (15 cm) |
| DuraVent | DuraTech Canada (DTC) | 1" Solid Pack | 6" (15 cm) |
| DuraVent | DuraPlus HTC | 2" Solid Pack | 6" (15 cm) |
| DuraVent | DuraTech Premium | 2" Solid Pack | 6" (15 cm) |
| DuraVent | DuraPlus | AC Triple Wall | 6" (15 cm) |
| Metal Fab | Temp Guard | 1" Solid Pack | 6" (15 cm) |
| Olympia Chimney | Champion Chimney System | 1" Solid Pack | 6" (15 cm) |
| Olympia Chimney | Rockford Chimney Systems | 1" Solid Pack | 6" (15 cm) |
| Olympia Chimney / SBI Venting Division | Ventis | 1" Solid Pack | 6" (15 cm) |
| SBI Venting Division | Nexvent | 1" Solid Pack | 6" (15 cm) |
| Security Chimney | S-2100+ | 2" Solid Pack | 6" (15 cm) |
| Selkirk | CF Sentinel (CF) | 2" Solid Pack | 6" (15 cm) |
| Selkirk | Super Pro 2100 (ALT) | 2" Solid Pack | 6" (15 cm) |
| Selkirk | Super Vent 2100 (JM) | 2" Solid Pack | 6" (15 cm) |
* Specific components may be required depending on the chimney manufacturer.
| Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 80" | 80" |
| Clearance – combustible side mantle to unit | 8" | 8" |
| Clearance – side wall | 13" | 13" |
| Clearance – minimum floor protection in front of the appliance | 16" | 16" |
| Clearance – top shelf to unit | 58" | 58" |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
|
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
Specifications
|
BTU |
75,000 |
|
Heating Capacity |
1,800-2,900 sq f |
|
FIrebox Size |
2.5 cu f |
|
Log Length |
20” |
|
Flue Pipe Diameter |
6” |
|
Weight |
426 lbs. |
|
Width |
36 3/4” |
|
Depth |
23 7/8” |
|
Height |
40 5/8” |
Configuration
|
Stratford II Wood Fireplace with Traditional Style Faceplate and Black Door Overlay |
|
|
Stratford II Wood Fireplace with Traditional Style Faceplate and Brushed Nickel Door Overlay |
|
|
Stratford II Wood Fireplace with Prairie Style Faceplate and Black Door Overlay |
|
|
Stratford II Wood Fireplace with Prairie Style Faceplate and Brushed Nickel Door Overlay |
|

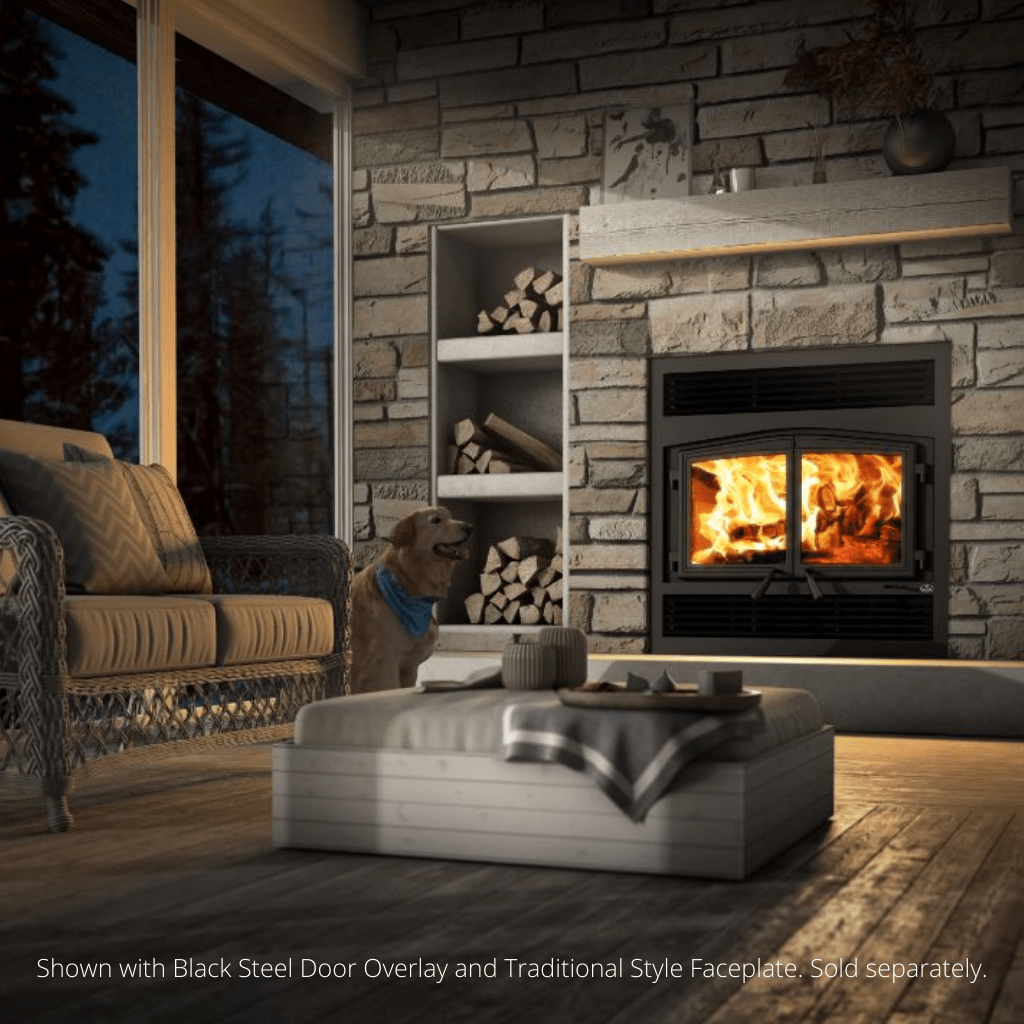

*NOTE: Shown with required door overlay and faceplate (not included). The door overlay and faceplate must be purchased to complete this unit
Options
Click to see options
|
4'' X 25' Insulated Flex Pipe for Fresh Air Kit --- reinforced aluminized trilaminate with fiberglass insulation. |
 |
|
4'' X 10' Insulated Flex Pipe for Fresh Air Intake Kit --- color black, made of two plies black polyester with fiberglass insulation |
|
|
4'' Fresh Air Intake Register with Airtight Damper --- allows outside combustion air to feed the appliance; airtight damper prevents air drafts when not in use; fully adjustable wall control included. |
 |
|
6'' X 25' Insulated Flex Pipe for Forced Air Kit --- high-quality work pipe features recognized with all Osburn products, with detailed craftsmanship and sturdy materials. |
 |
|
Fireplace Carrying Handles |
 |
|
Firescreen Door --- protects from sparks while still providing easy access |
 |
|
Forced Air Kit 300 CFM |
 |
|
Glass Hearth Pad 10mm - 18" X 50" --- particularly resistant to shocks; a safe and durable choice for a fireplace; glass construction will add elegance to decor; polished edges and corners make the pad non-cutting |
 |
|
Heat Shield for Surround/Shelf |
 |
